Globe Valve

Globe Valve

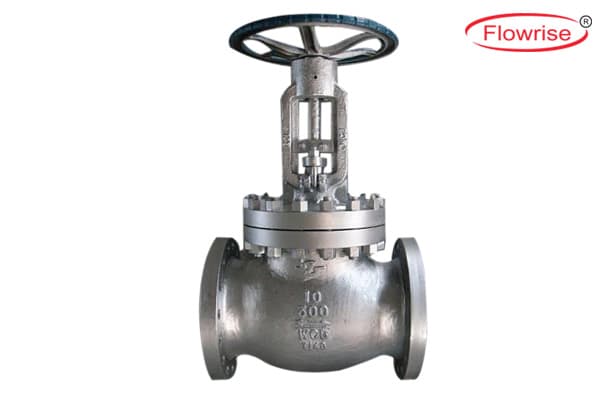

Our company manufacture all types of Globe Valves. Globe valves are used for limited open and close location-to control flow of the fluid in the process industries. Globe Valves are manufactured in almost all material like C.I, SG IRON, WCB, LCB, WC-1, WC-6, WC-9, CF-8, CF-8M, CF-3, CF-3M, CN-7M, HV-9, CD4-Cu.etc. , globe valves are widely used for high temperature thermic fluid and steam applications. The valves also could be used for cryogenic applications. Globe valves are linear motion valves with rounded bodies, from which their name is derived. Globe valves consist of the following moving parts – the disk, the valve stem, and the hand wheel.

Cast Carbon Steel Globe Valves (Din ND – 40 Type) :-

Cast Iron Globe Valve (ND 16 Type)
S.S. Globe Valve (150 Class)

Cast steel Globe Valve are for high pressure & high temperature application for a wide range of fluids.These valves are available with end connections (Flanges) conforming to DIN 2545 for DIN ND – 40 seriies & sizes ranging from 1/2″ to 12″.

MATERIALS :-

Body, Bonnet & gland : ASTM A-216 Gr. WCB.

Stem, Back Seat, Gland Follower, Body Face Rings, Disc, Disc Nut etc. : 13% Cr. Steel (Hardend & Lapped)

Bonnet Studs & Nuts : Carbon Steel

Globe Valve

Cast Carbon Steel C.I ,S.S. Globe Valves (class – 150) :

These Valves are suitable for Water, Steam, Air, Gas, Oil or Liquids with correstive properties.
MATERIALS :-

Body, Bonnet & gland : ASTM A-216 Gr. WCB.

Stem, Back Seat, Gland Follower, Body Face Rings, Disc, Disc Nut etc. : 13% Cr. Steel (Hardend & Lapped)

Bonnet Studs & Nuts : Carbon Steel

Primary Service Rating & Tempreature
industrial_valve
NON RETURN VALVE
Cast Carbon Steel
LIFT UP TYPE CHECK VALVE (NON RETURN VALVE) :Valves are available in Cast Carbon Steel end connections conforming to ND – 40 series as well as ND – 16 series, the size range from 1/2″ to 12″
MATERIALS :-* Bonnet Studs & Nuts : Carbon Steel
* Valve & Seat : 13% Cr. Steel (Hardend & Lapped)
*Body, Bonnet : ASTM A-216 Gr. WCB.
